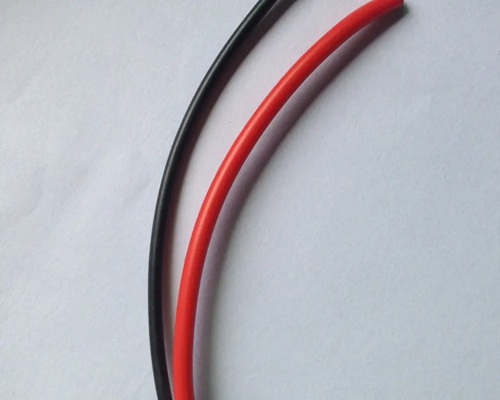

These ARX-9 Fluoroelastomer (FKM) Wire Cables are designed and manufactured by CITCABLE as a range of high-performance fluid-blocking and anti-capillary wires, ideal for use in resistant oil motor lead wires, sensor connectors, electromagnets, and high-temperature fluid environments. The irradiation cross-linked fluoropolymer insulation not only provides outstanding electrical performance but also ensures exceptional thermal stability (-40 °C to +200 °C, with short circuit overload up to +300 °C) and superior fluid resistance, making the cable highly reliable for the most demanding environments. Furthermore, these cables exhibit a high current carrying capacity, excellent resistance to chemicals, hydrolysis, and weathering, as well as superior flame retardancy (UL VW-1, FT4, FT6), ensuring consistent safety and operational excellence in harsh conditions.
The ARX-9 Wire Cable is designed with conductive cores offering a high current carrying capacity and a specialized high-performance irradiation cross-linked fluoropolymer (FKM) insulation. This construction helps maintain reliable electrical performance, ensures exceptional thermal stability (-40 °C to +200 °C) and superior fluid-blocking capabilities, and provides rugged durability to meet rigorous engine, transmission, and other tough operating condition specifications.
| Layer | Material | Function |
|---|---|---|
| Conductor | 22AWG wire core | Provides high current carrying capacity; suitable for engines, transmissions, resistant oil motor lead wires, sensor connectors, and electromagnets. |
| Insulation Layer | Irradiation cross-linked fluoropolymer / Fluoroelastomer (FKM) | Built to handle high-temperature fluid environments; provides a broad temperature range (-40 °C to +200 °C) and withstands short circuit overload up to +300 °C. |
| Surface / Outer Layer | Electron beam crosslinked material | Offers high-performance fluid blocking and anti-capillary properties; features high resistance to thermal pressure, chemicals, hydrolysis, and weathering; flame retardant (UL VW-1, FT4, FT6); compatible with common insulating varnishes and impregnation resins. |
Without FKM Insulation (Standard Cable)Standard materials $\rightarrow$ poor fluid resistance $\rightarrow$ capillary failure in engines and transmissions Common Limitations:
|
With Fluoroelastomer (FKM) InsulationExceptional fluid blocking, anti-capillary properties, and thermal stability Engineering Advantages:
|
| Feature | Specification |
|---|---|
| Product Name | ARX-9 Wire Cable |
| Wire Gauge | 22AWG |
| Insulation Material | Irradiation cross-linked fluoropolymer (Fluoroelastomer FKM) |
| Temperature Range | -40°C to +200°C (other material temperature -196°C to +260°C) |
| Short Circuit Overload | Up to +300°C |
| Current Capacity | High current carrying capacity |
| Crosslinking Method | Electron beam crosslinked |
| Flame Retardant | UL VW-1, FT4, FT6 |
| Resistance Properties | High resistance to thermal pressure, chemicals, hydrolysis, weathering, and soldering |
| Compatibility | Compatible with all common insulating varnishes and impregnation resins |
| Physical Characteristics | Flexible minimum outer diameter, easy to strip |
We provide customized anti-capillary wire cable solutions tailored to your specific application requirements, ensuring optimal performance for your machinery.
| Customization Item | Options |
|---|---|
| Conductor Size | 0.35mm² - 6.0mm² |
| Insulation Material | FKM / FEP / ETFE / XLPE / PVDF |
| Voltage Rating | Customized according to requirement |
| Color | Black, Red, Blue, or Custom colors |
| Cable Length | Customized packaging / cut to length |
With advanced cable extrusion equipment and strict quality control processes, we provide customized anti-capillary wire cable solutions for industrial OEM customers. Our capabilities include:
| Test Item | Purpose |
|---|---|
| Oil Resistance Test | Verify insulation durability under continuous fluid exposure |
| High Temperature Test | Check thermal stability and prevent melting/degradation |
| Voltage Withstand Test | Ensure electrical safety and prevent breakdown |
| Flexibility Test | Evaluate mechanical performance in dynamic applications |
| Fluid Migration Test | Verify the effectiveness of the anti-capillary structure |
A: These cables are used wherever optimum safety and reliability are called for under tough operating conditions, including resistant oil motor lead wires, coil winding, sensor connectors, electromagnets, transformers, pumps, solenoids, and heat sensors.
A: The ARX-9 wire cable features a broad temperature range from -40°C to 200°C and can withstand short circuit overloads up to +300°C. It is specifically built to handle high-temperature fluid environments in engines and transmissions.
A: The cable uses an irradiation cross-linked fluoropolymer insulation that provides high-performance fluid blocking and anti-capillary properties. It exhibits high resistance to thermal pressure, chemicals, hydrolysis, and weathering, making it an excellent, cost-effective replacement for TFE, FEP, Tefzel, TPI, PEI, or PEEK insulated wires.
